KL50000 Counter Bore Reconditioning Tool

KL50000 Counter Bore Re-Conditioning Tool

The K-Line 50000 is used to resurface the seat to inlay a shim.

• No special bases required.
• The procedure can be performed with the engine in or out of the chassis.
• Does not require the operator to apply any downward force. Spring Plungers located in the Base Assembly apply all the downward pressure that the tool requires.
• No power tools required. Tool rotation is done by hand only.
• Set the tool one time and resurface all counter bores for the entire engine block.

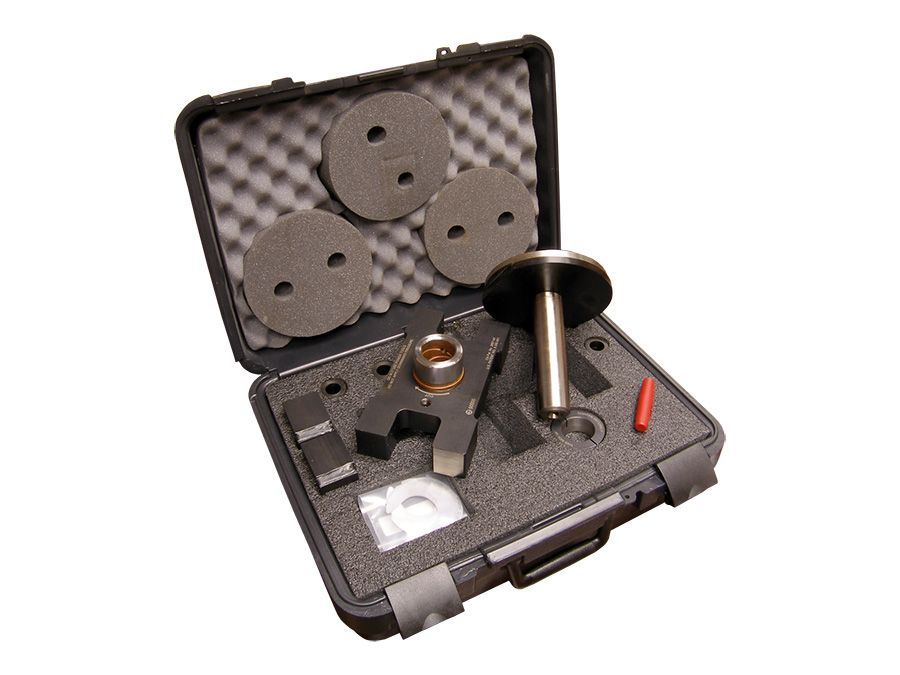

Kit Includes:

• 1x KL50001A Base Assembly
• 1x KL50008 Bolt Standoffs
• 1x KL50000-2 Stop Collar
• 1x KL50000-6 T-Handle Allen Wrench
• 3x KL50000-8 Foam Plugs for Cutter
• 1x KL50009 Spacer
• 4x AT50000-12 Shim Set

Cutter Assemblies sold separately for the following Engines:

• 50001 International/Navistar DT466, DT530, DT570, & HT570
• 50003  Detroit Diesel Series 60
• 50004 CAT 3400 Series, C-15, C-16, C-18, C-27, C-32 and Navistar 15 L
• 50005 Cummins ISX 150mm
• 50006 CUMMINS NT/NH, N14
• 50007  International/Navistar MAXXFORCE 11L/13L BIG BORE
• 50011 CAT C-10, C-11, C-12, C-13
• 50012 CAT 3306
• 50013 Cummins ISX 152mm
