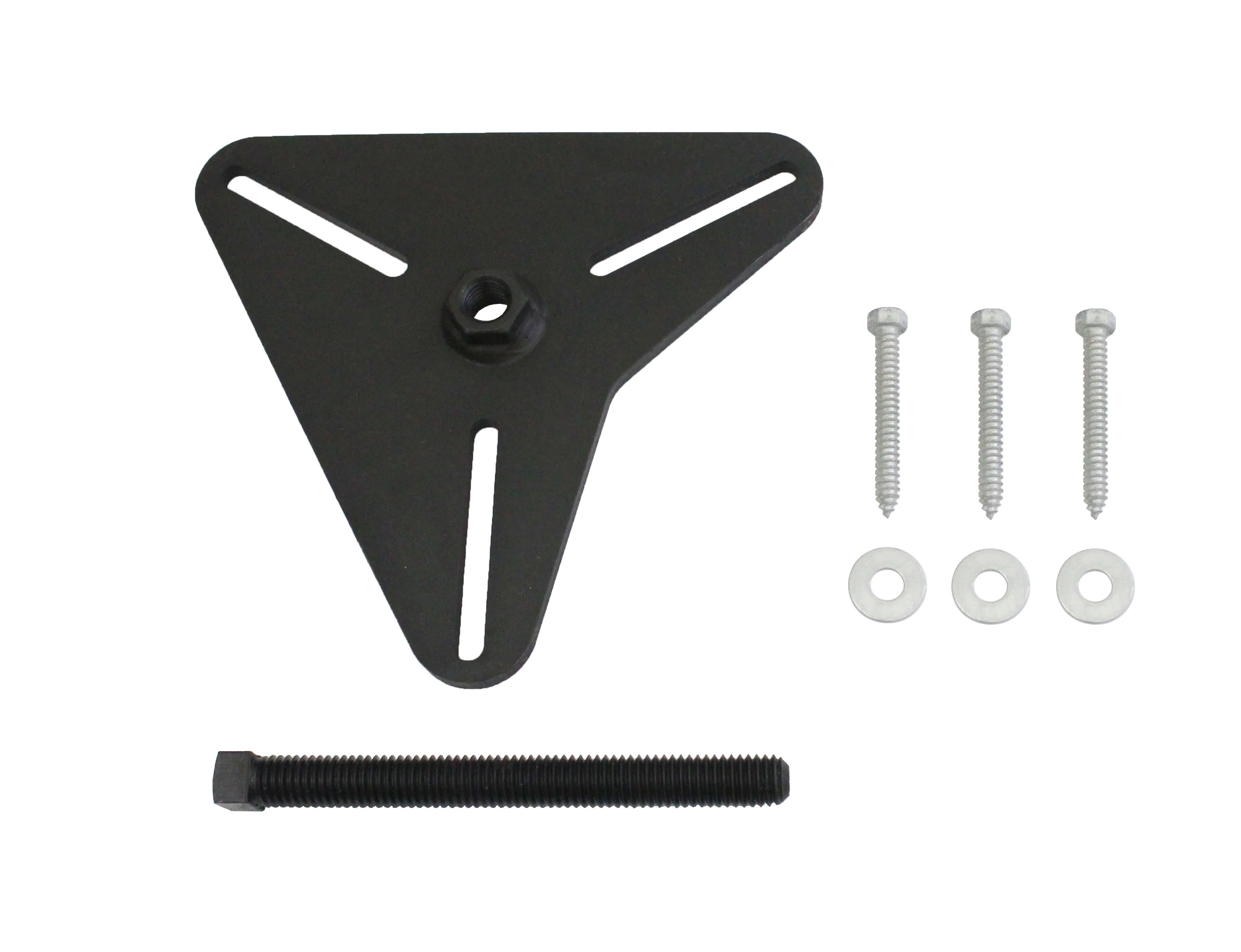

JDG698A Alternative Rear Unitized Seal And Wear Sleeve Removal Tool

JDG698A Alternative Rear Unitized Seal And Wear Sleeve Removal Tool

Use JDG698A with a 3/16" drill bit and three 2 1/5" sheet metal screws with washers to remove the seal and wear sleeve assembly.

Note: Holes must be drilled at outer edge of seal case. Screws will pull seal against wear ring, thereby removing both pieces.

Use KCD10002A to install the unitized seals on standard flat flywheel housings.

Seal Application:

• AR92893
• AT22965
• RE11036
• RE17831
• RE24959
• RE35885
• RE44574
• RE537070
