3406E C-15 C-16 Caterpillar Fuel System Timing Tool Kit

3406E C-15 C-16 Cat Fuel System Timing Tool Kit

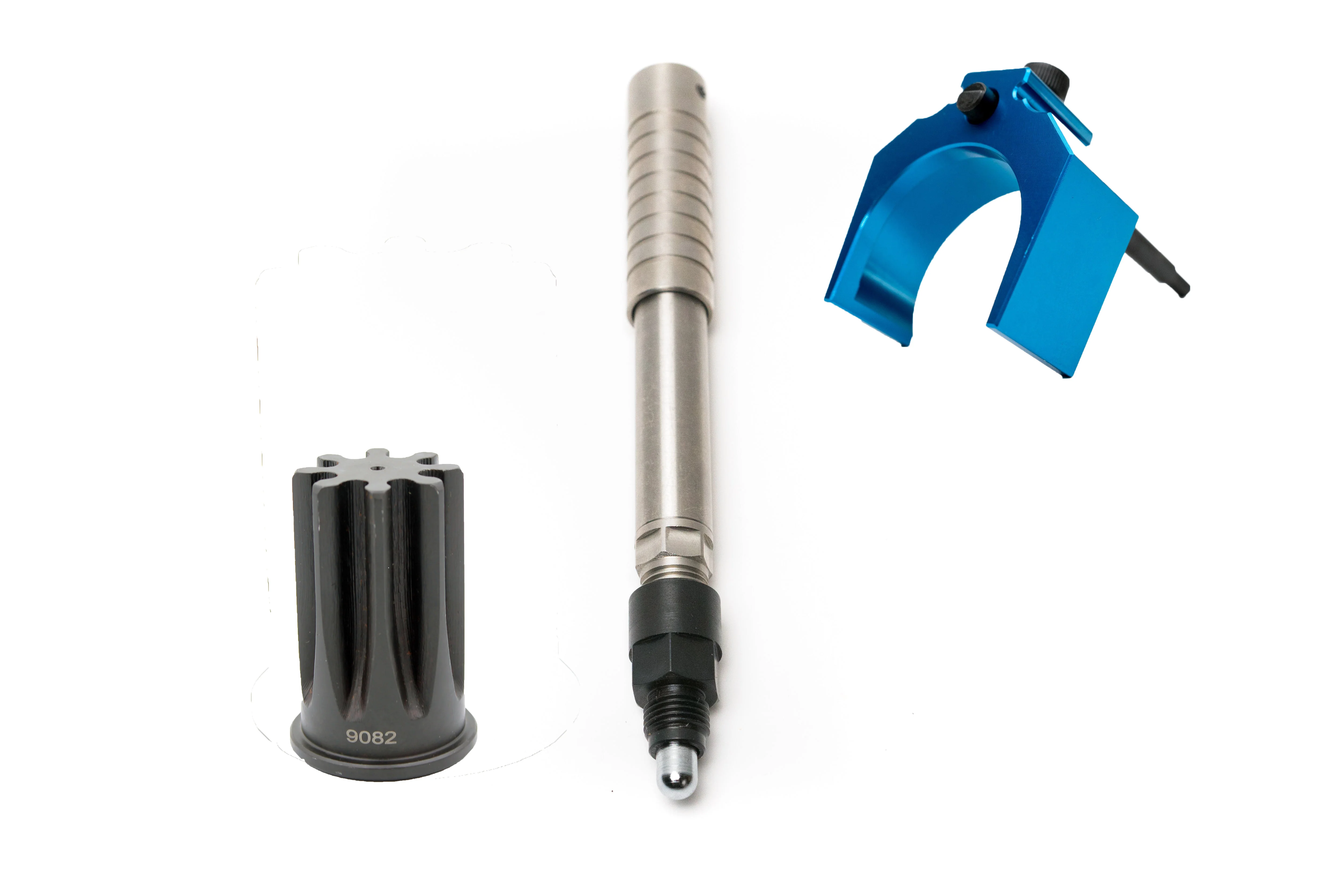

This kit includes the tools below to correctly set the timing on the injector pump and injectors. This kit was designed to be used on Cat 3406E, C-15 and C-16.

FEPRO2083 Cat Automatic Timing Pin
Applications : C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400
C-11 and C-13 require adapters 139-7063 or 139-7064 depending on the application.

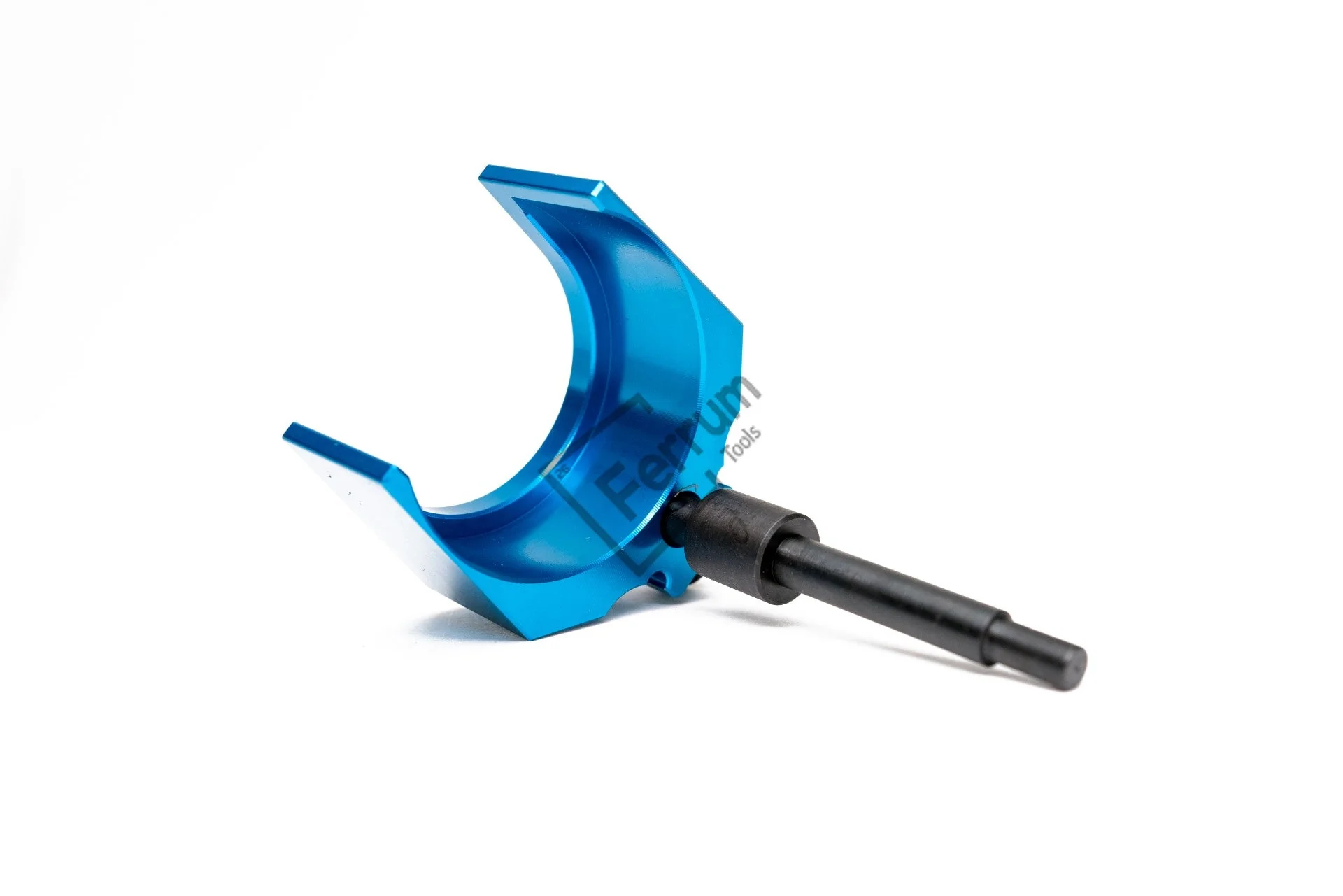

FEPRO7227 Injector Height Gauge Assembly Alt.
Applications: 3406E, C-15 and C-16. Injector height gauge is used in order to obtain a dimension of 78.0 ± 0.2 mm (3.07 ± 0.01 inch). The dimension is measured from the top of the unit.

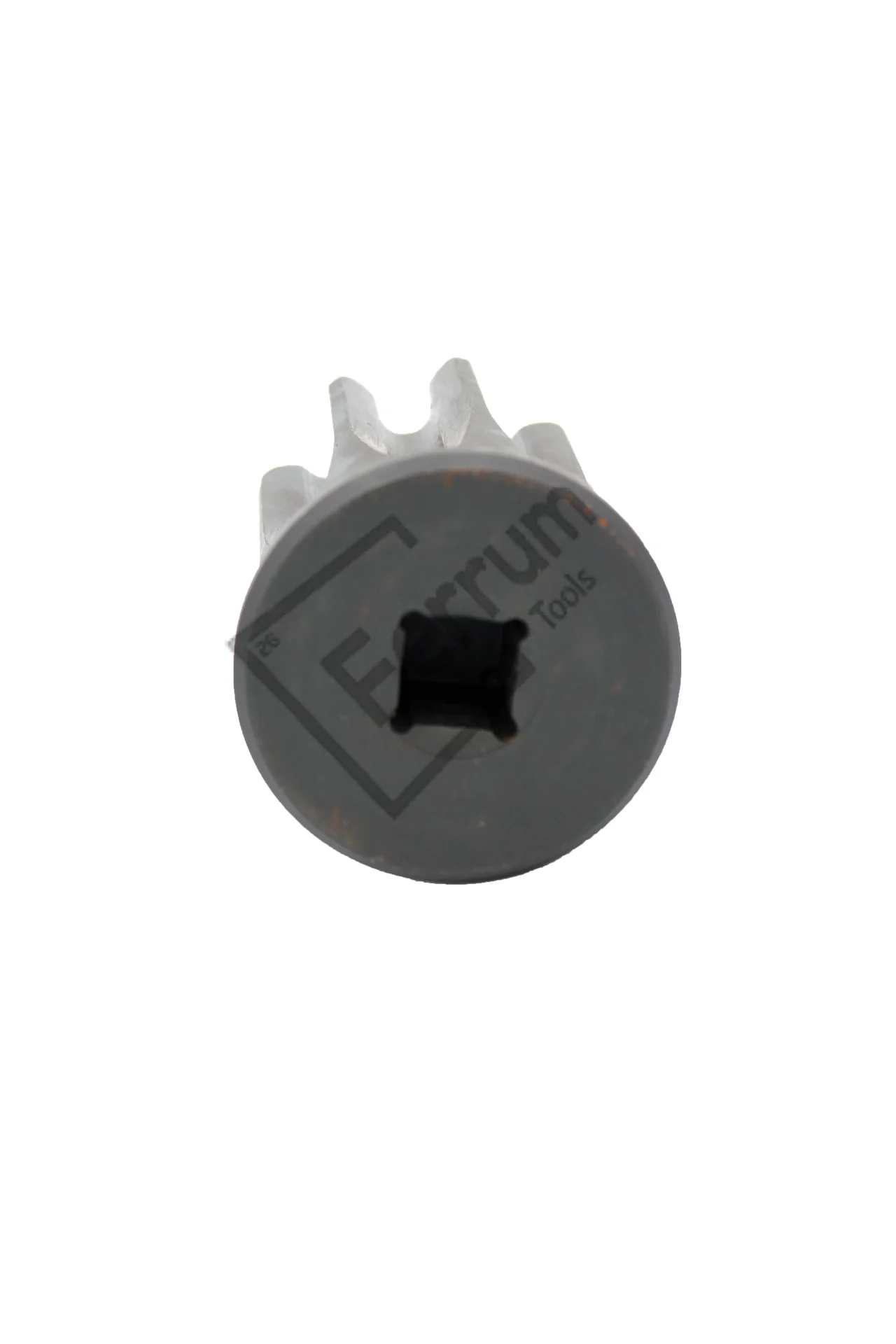

FEPRO9082 Engine Barring Socket Alt.
Applications: 3176, 3196, 3300 Series, 3400 Series, 3500 Series, C9, C10, C12, C13, C15 and C16
